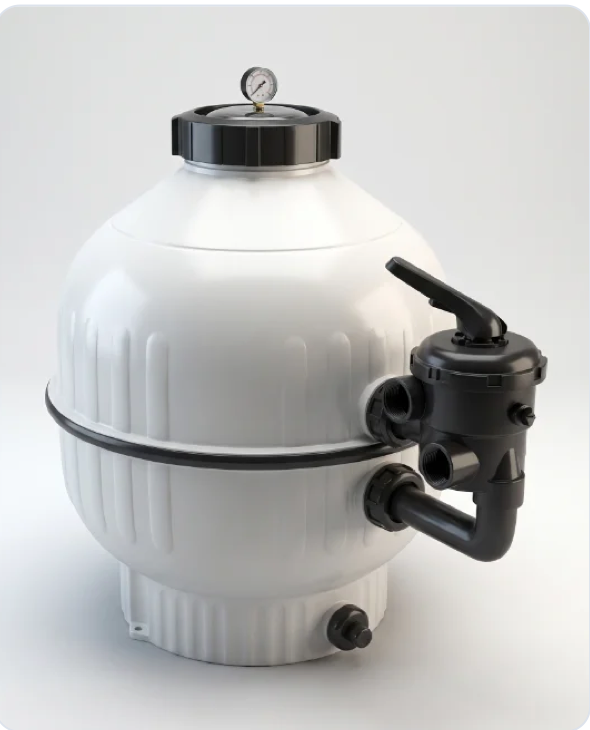

AquaShield Sand Filters
Sand filtration for Saudi hotel pools, compounds and aquatic centres: three vessel sizes from 600 to 900 mm, up to 500 litres a minute, silica sand media and a 1.5 to 2.5 inch multiport valve.
What it does.
- Three vessel sizes: 600, 750 and 900 mm
- Up to 240, 350 and 500 L/min
- High-strength, chemical-resistant thermoplastic body
- Top- or side-mount multiport valve, six modes
- Integrated pressure gauge and manual air bleeder
- Silica sand media
Typical applications
AquaShield Sand Filters in Saudi Arabia
Compound and hotel pools in Riyadh and Jeddah often have their plant outdoors. AquaShield's vessels are built from chemical-resistant thermoplastic for outdoor installs.
Sizes run from 600 mm, at up to 240 litres a minute, to 900 mm, at up to 500, covering systems of around 30,000 to 240,000 litres.
Common questions
Is it for a compound pool?
Yes. Residential developments are one of its main uses, along with hotels and aquatic centres.
What valve sizes are there?
Multiport valves from 1.5 to 2.5 inches, with six modes.
How does it clean itself?
By backwash through the multiport valve, which reverses the flow through the sand.
Supplied, installed and serviced in Saudi Arabia
Saudi supply is a mix of desalinated water and groundwater. Where groundwater is blended in, as in Riyadh, the water can be hard enough to scale heaters and machines, so we check your supply before choosing a system.
Tell us your city, whether the site is on mains or tanker water, and what the system is for. We specify it, quote in riyals and install it.
Source: Al-Hamzah & Fellows, Water 16(13), 1810 (2024).
Where we work
- Riyadh
- Jeddah
- Across Saudi Arabia
Talk to the team
Interested in the AquaShield Sand Filters?
Tell us your setup and we'll specify, supply, install and service the right configuration for your site.
